Ensemble regression and calibration-in-time

Here, we replicate the analysis of Boldt et al. (2015), performing age-uncertain calibration-in-time on a chlorophyll reflectance record from northern Alaska, using geoChronR.

The challenge of age-uncertain calibration-in-time is that age uncertainty affects both the calibration model (the relation between the proxy data and instrumental data) and the reconstruction (the timing of events in the reconstruction). geoChronR simplifies handling these issues.

Let’s start by loading the packages we’ll need.

library(lipdR) #to read and write LiPD files
library(geoChronR) #of course
library(readr) #to load in the instrumental data we need
library(ggplot2) #for plotting

Load the LiPD file

OK, we’ll begin by loading in the Kurupa Lake record from Boldt et al., 2015. We’ll download the file from lipdverse, (using purrr::insistently to avoid issues with buildling) but you could also load it from a local file.

readLipdInsistently <- purrr::insistently(f  = lipdR::readLipd,quiet = TRUE)
K <- readLipdInsistently("http://lipdverse.org/geoChronR-examples/Kurupa.Boldt.2015.lpd")

## [1] "Loading 1 datasets from /var/folders/xc/cl1fyykn2pj4ryhdw6r1mqtc0000gn/T//RtmpDUTzwW/Kurupa.Boldt.2015.lpd..."
## [1] "reading: Kurupa.Boldt.2015.lpd"

Check out the contents

sp <- plotSummary(K,paleo.data.var = "RABD",summary.font.size = 6)

## [1] "Found it! Moving on..."
## [1] "Found it! Moving on..."
## [1] "Found it! Moving on..."
## [1] "Found it! Moving on..."
## [1] "Found it! Moving on..."

print(sp)

## TableGrob (4 x 4) "arrange": 4 grobs
##   z     cells    name                 grob
## 1 1 (1-1,1-2) arrange gTree[GRID.gTree.11]
## 2 2 (1-2,3-4) arrange       gtable[layout]
## 3 3 (2-4,1-2) arrange       gtable[layout]
## 4 4 (3-4,3-4) arrange       gtable[layout]

Create an age model with Bacon

K <- runBacon(K,
              lab.id.var = 'labID',
              age.14c.var = 'age14C',
              age.14c.uncertainty.var = 'age14CUncertainty',
              age.var = 'age',
              age.uncertainty.var = 'ageUncertainty',
              depth.var = 'depth',
              reservoir.age.14c.var = NULL,
              reservoir.age.14c.uncertainty.var = NULL,
              rejected.ages.var = NULL,
              bacon.acc.mean = 10,
              bacon.thick = 7,
              accept.suggestions = TRUE,
              ask = FALSE,
              bacon.dir = "~/Cores",
              suggest = FALSE,
              close.connection = FALSE)

##  Using a mix of cal BP and calibrated C-14 dates

##  Will run 16,500,000 iterations and store 4,000

## Good MCMC mixing (effective sample size=541.42, >200)

## No sign of MCMC drift (z=0.04, <1.96), OK

## Warning, this will take quite some time to calculate. I suggest increasing d.by to, e.g., 10

## Calculating age ranges...

##

## Preparing ghost graph...

##
## Mean 95% confidence ranges 319 yr, min. 4 yr at 0 cm, max. 521 yr at 322 cm

## 100% of the dates overlap with the age-depth model (95% ranges)

## Posteriors: accrate mean 9.18, shape 1.59, memory mean 0.5, strength 8.34

## Good MCMC mixing (effective sample size=541.42, >200)

## No sign of MCMC drift (z=0.04, <1.96), OK

## Warning, this will take quite some time to calculate. I suggest increasing d.by to, e.g., 10

##

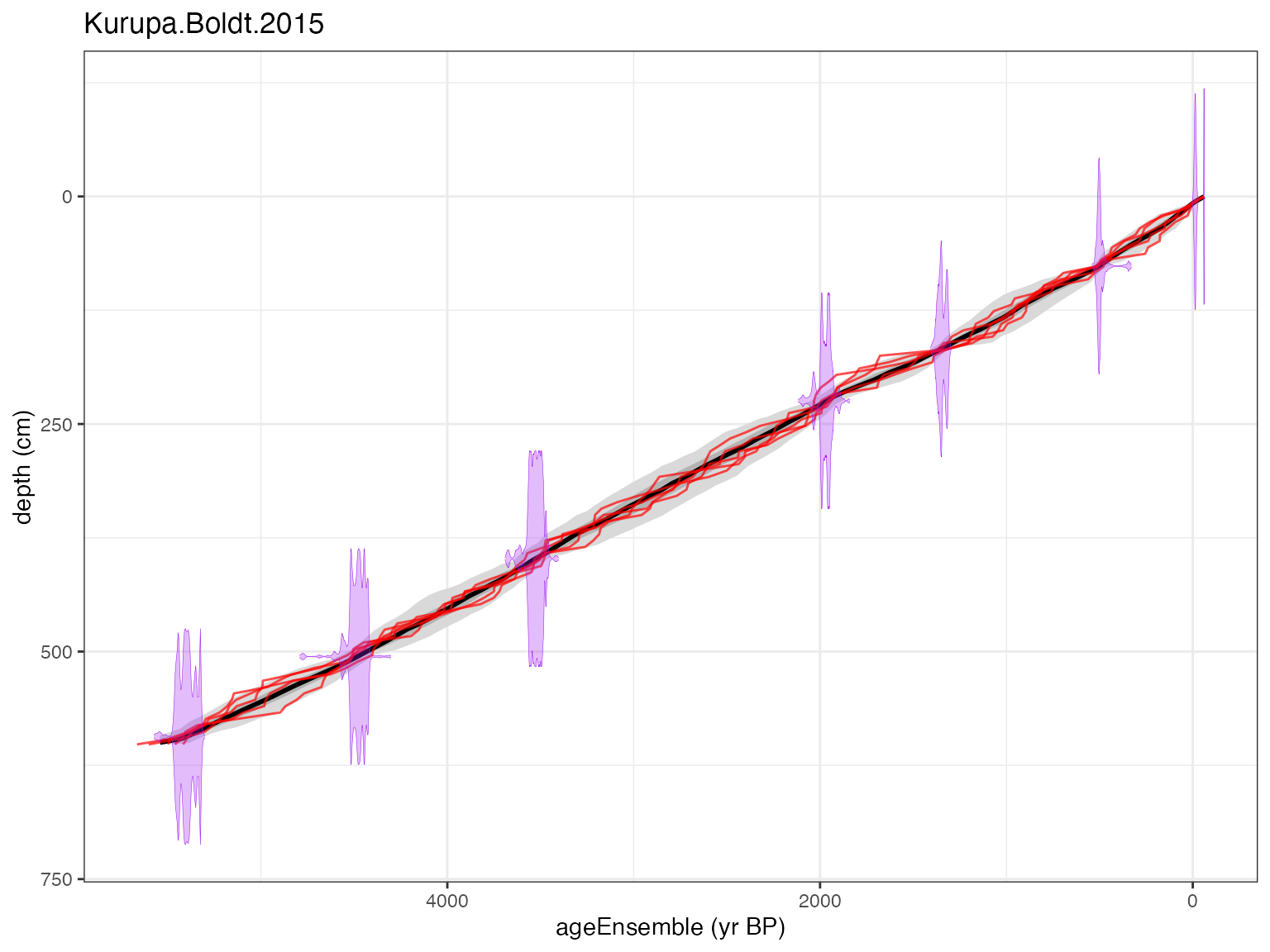

And plot the ensemble output

plotChron(K,age.var = "ageEnsemble",dist.scale = 0.2)

## [1] "Found it! Moving on..."
## [1] "Found it! Moving on..."
## [1] "plotting your chron ensemble. This make take a few seconds..."

## Scale for x is already present.
## Adding another scale for x, which will replace the existing scale.

Map the age ensemble to the paleodata table

This is to get ensemble age estimates for each depth in the paleoData measurement table

K <- mapAgeEnsembleToPaleoData(K,age.var = "ageEnsemble")

## [1] "Kurupa.Boldt.2015"
## [1] "Looking for age ensemble...."
## [1] "Found it! Moving on..."
## [1] "Found it! Moving on..."
## [1] "getting depth from the paleodata table..."
## [1] "Found it! Moving on..."
## mapAgeEnsembleToPaleoData created new variable ageEnsemble in paleo 1 measurement table 1
## mapAgeEnsembleToPaleoData also created new variable ageMedian in paleo 1 measurement table 1

Select the paleodata age ensemble, and RABD data that we’d like to regress and calibrate

kae <-  selectData(K,"ageEnsemble")

## [1] "Found it! Moving on..."

rabd <- selectData(K,"RABD")

## [1] "Found it! Moving on..."

Calculate sedrate

Now that we have an age model, we can also take a look at what the age model implies about sedimentation rates, and their uncertainties. So let’s calculate an ensemble of sedimentation rates using the members in the age ensemble. The createSedRateEnsemble() function will do this, and create a new paleoData model ensemble table.

#create the table
K <- createSedRateEnsemble(K) #you may need to modify some parameters to this function if you have a complex LiPD object

## [1] "Found it! Moving on..."
## [1] "Found it! Moving on..."
## Created a model in paleoData-1, model-1, ensembleTable 1 with variables: depth, sedimentationRate
##
## Also created a summary table in paleoData-1, model-1

#now let's see how it looks. We can pull sed rates and the corresponding ages out of that table
srEns <- selectData(K,table.type = "ensemble",var.name = "sedimentationRate")

## [1] "Found it! Moving on..."

srAgeEns <- selectData(K,table.type = "ensemble",var.name = "ageEnsemble")

## [1] "Found it! Moving on..."

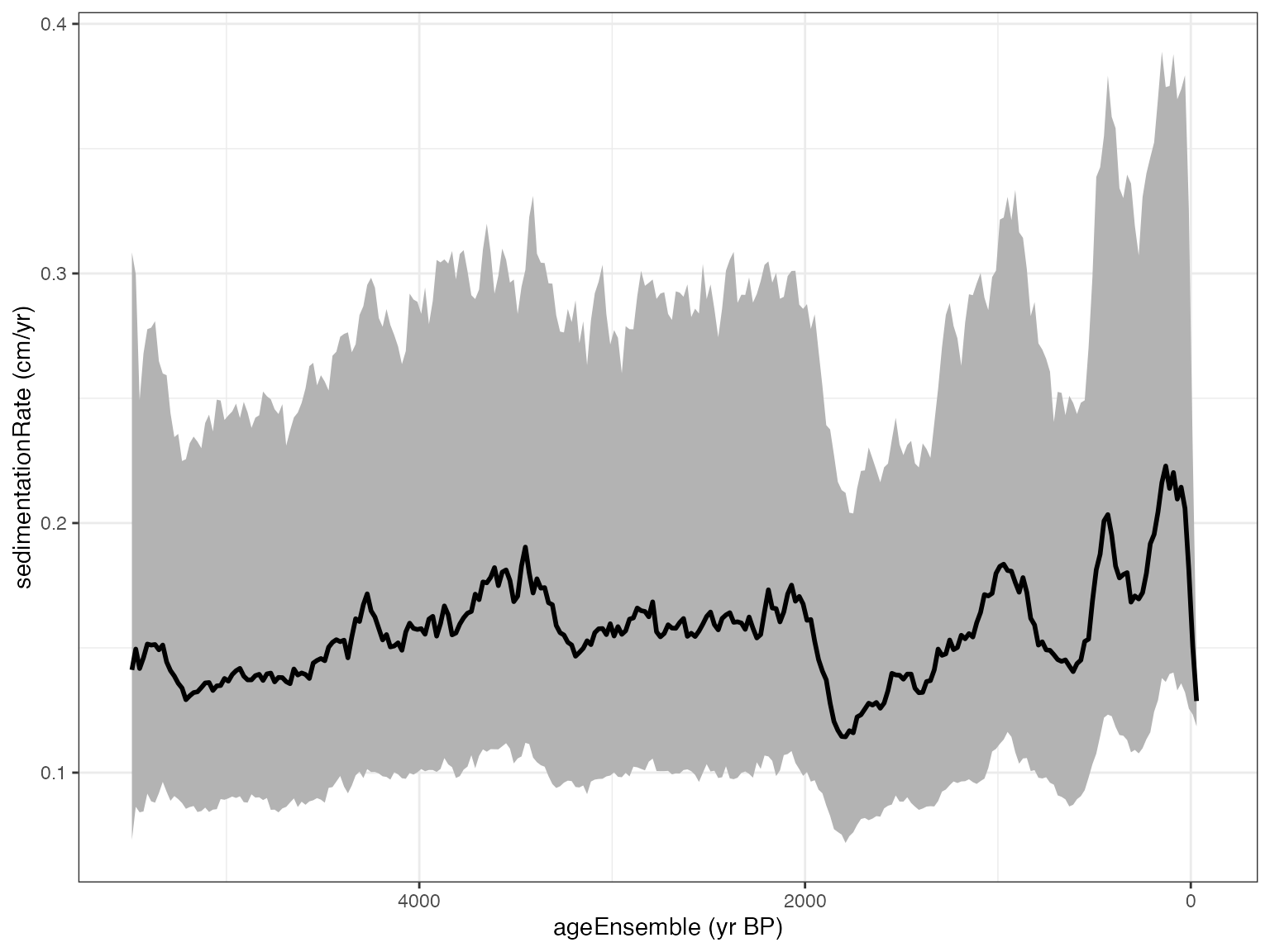

#and plot it
plotTimeseriesEnsRibbons(X = srAgeEns, Y = srEns,probs = c(0.25,0.5,0.75), x.bin = seq(-70,5500,by = 20))

There’s quite a bit of uncertainty here. This is because we’re looking at both the uncertainty in age, and the uncertainty in sedimentation rate, which is the first derivative of age. If we wanted to convert our chla concentrations to flux, we’d start here. But we’ll stick with concentrations.

Now load in the instrumental data we want to correlate and regress against

kurupa.instrumental <- readr::read_csv("http://lipdverse.org/geoChronR-examples/KurupaInstrumental.csv")

## Rows: 134 Columns: 2
## ── Column specification ────────────────────────────────────────────────────────
## Delimiter: ","
## dbl (2): Year (AD), JJAS Temperature (deg C)
##
## ℹ Use `spec()` to retrieve the full column specification for this data.
## ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.

Check age/time units before proceeding

kae$units

## [1] "yr BP"

yep, we need to convert the units from BP to AD

kae <- convertBP2AD(kae)

Create a “variable list” for the instrumental data

kyear <- list()
kyear$values <- kurupa.instrumental[,1]
kyear$variableName <- "year"
kyear$units <- "AD"

kinst <- list()
kinst$values <- kurupa.instrumental[,2]
kinst$variableName <- "Temperature"
kinst$units <- "deg (C)"

Calculate an ensmeble correlation between the RABD and local summer temperature data

corout <- corEns(kae,rabd,kyear,kinst,bin.step=2,percentiles = c(.05,.5,.95 ))

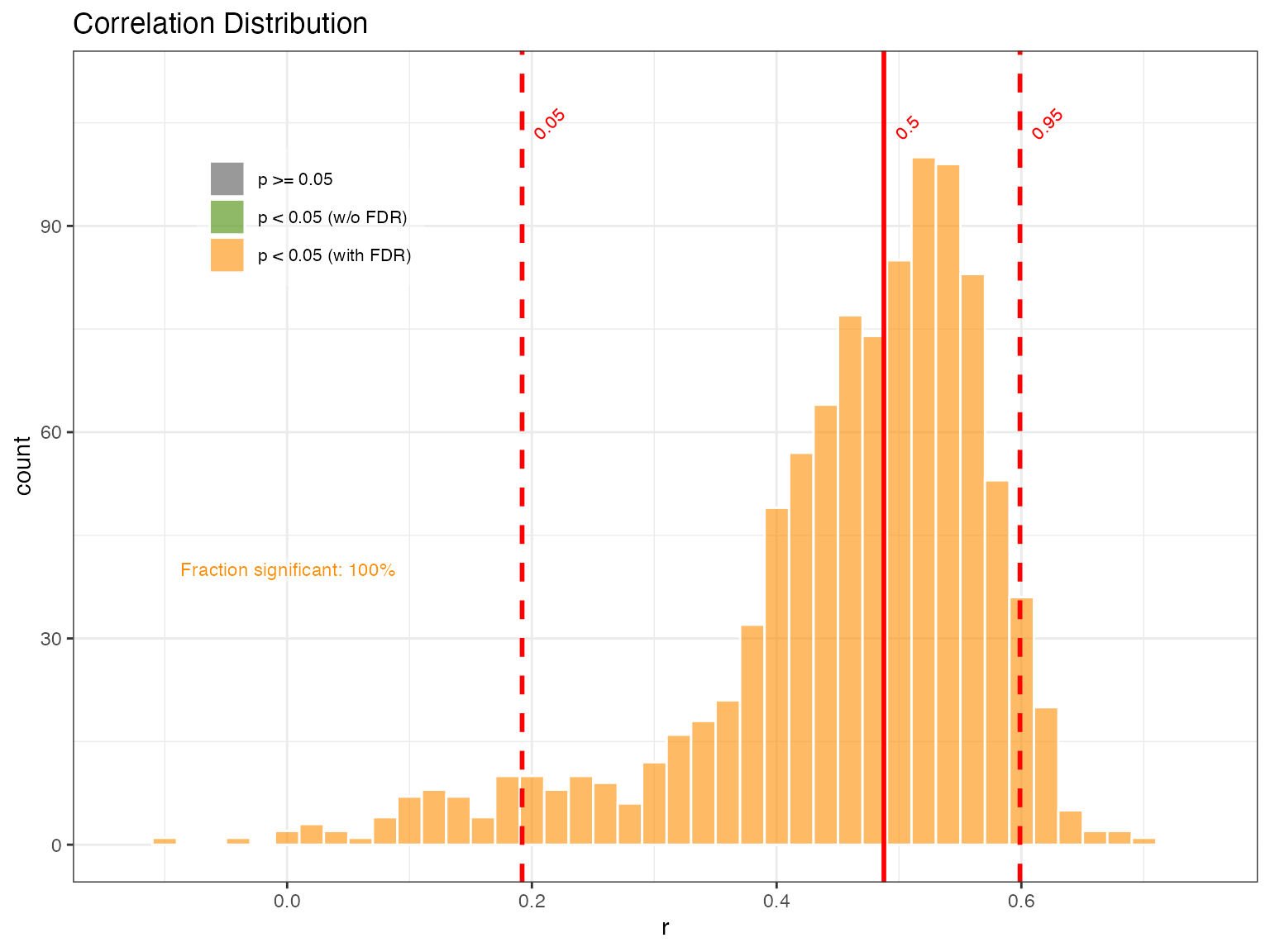

And plot the output

Note that here we use the “Effective-N” significance option as we mimic the Boldt et al. (2015) paper.

plotCorEns(corout,significance.option = "eff-n")

Mixed results. But encouraging enough to move forward.

Perform ensemble regression

OK, you’ve convinced yourself that you want to use RABD to model temperature back through time. We can do this simply (perhaps naively) with regession, and lets do it with age uncertainty, both in the building of the model, and the reconstructing

regout <- regressEns(time.x = kae,
                    values.x = rabd,
                    time.y =kyear,
                    values.y =kinst,
                    bin.step=3,
                    gaussianize = FALSE,
                    recon.bin.vec = seq(-4010,2010,by=20))

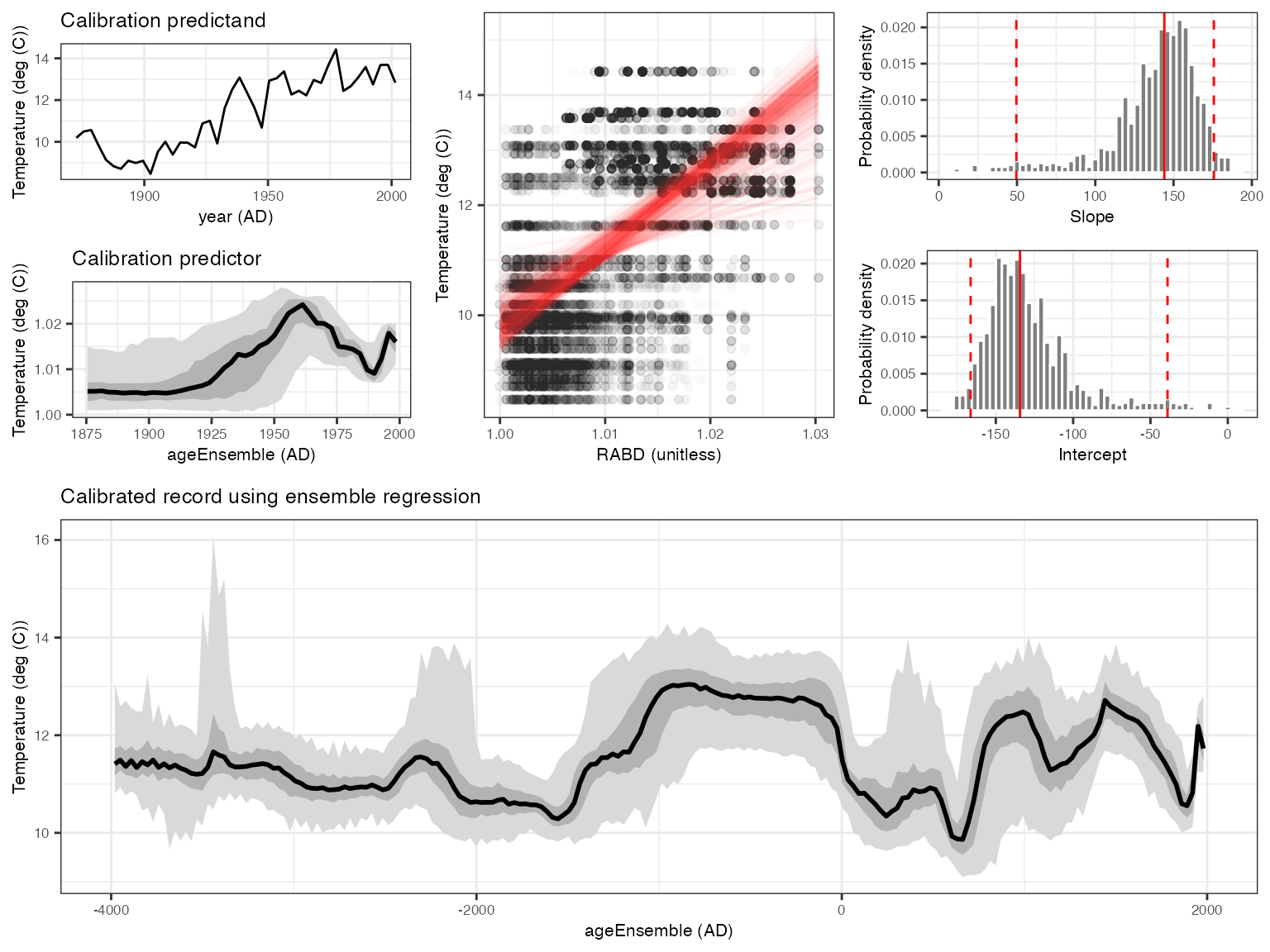

And plot the output

regPlots <- plotRegressEns(regout,alp = 0.01,font.size = 8)

This result is consistent with that produced by Boldt et al., (2015), and was much simpler to produce with geoChronR.

In the next vignette learn about spectral analysis in geoChronR.

```
